TLP521 Pinout, Packaging and Specifications

Description：

TLP521、TLP521-2 and TLP521-4 series of optical coupling isolators consist of an infrared light-emitting diode and a NPN silicon light transistor in a space-efficient two-wire plastic package.

Isocom company's TLP521-4 is a through-hole mounted optocoupler isolator DIP 16 pin package. isolators include infrared light-emitting diodes and NPN silicon phototransistors. This isolator is widely used in computer terminals, industrial system controllers, signal transmitters between different potential and impedance systems.

TLP521 Features：

• AC Isolation Voltage 5300VRMS

• CTR Selections Available

• Wide Operating Temperature Range-30°C to +100°C

• Lead Free and RoHS Compliant

• UL File E91231 Package Code “EE”

• VDE Approval Certificate No. 40028086

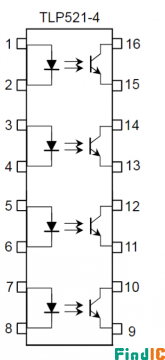

TLP521 pin diagram and functions:

Pin 1, 3, 5, 7: Anode

Pin 2, 4, 6, 8: Cathode

Pin 9, 11, 13, 15: Emitter

Pin 10, 12, 14, 16: Collector

Type Part TLP521-4 Specification:

Technical parameters:

Rise/drop time :4μs,3μs

Output voltage :55 V

Number of channels :4

Number of pins :16

Forward voltage :1.15 V

Input current :10 mA

Dissipated power :200 mW

Rise time :4µs

Isolation voltage: kV 7.5

Output voltage (Max):55V

Forward voltage (Max):1.3V

Forward current (Max):50 mA

Drop time :3µs

Working temperature (Max):100℃

Operating temperature (Min):-30℃

Dissipated power (Max):200 MW

Package parameters:

Installation: Through Hole

Number of pins :16

Encapsulation: DIP

Dimensions:

Encapsulation: DIP

Physical parameters:

Working temperature :-30℃~100℃

Other:

Product life cycle: Active

Packing: Each

Manufacturing applications: Test &Measurement,Industrial,Signal Processing,

Compliance:

RoHS criteria: RoHS Compliant

Criteria for Lead: Lead Free

REACH SVHC criteria: No SVHC

REACH SVHC version :2015/12/17

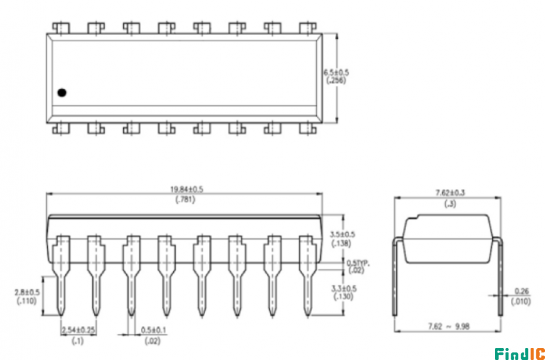

TLP521 Package:
