UA741 Pinout and Function Description

 1、UA741  Description:

The UA741 device is a general-purpose operational amplifier featuring offset-voltage null capability.

The high common-mode input voltage range and the absence of latch-up make the amplifier ideal for voltage-follower applications. The device is short circuit protected and the internal frequency compensation ensures stability without external components. A low value potentiometer may be connected between the offset null inputs to null out the offset voltage.The UA741C device is characterized for operation from 0°C to 70°C. The UA741M device(obsolete) is characterized for operation over the full military temperature range of  –55°C to 125°C.

2、UA741  Features:

• Short-Circuit Protection

• Offset-Voltage Null Capability

• Large Common-Mode and Differential Voltage

• Ranges

• No Frequency Compensation Required

• No Latch-Up

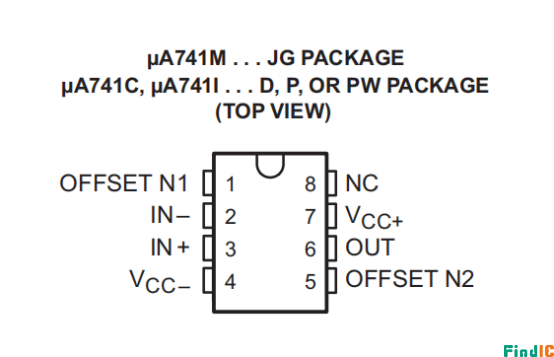

3、UA741 Pin Configuration and Function:

pins 3(I): Noninverting input

pins 2(I): Inverting input

pins 8(—): No internal connection

pins 1(I):  "Externalinput offset voltage adjustment"

pins 5(I): "Externalinput offset voltage adjustment"

pins 6(O): Output

pins 7(—): Positive supply

pins 4(—): Negative supply

4、UA741CP  Specification:

Manufacturer: Texas Instruments

Product Category: Operational Amplifiers - Op Amps

RoHS:  Details

Mounting Style: Through Hole

Package/Case: PDIP-8

Number of Channels: 1 Channel

Supply Voltage - Max: 36 V

GBP - Gain Bandwidth Product: 1 MHz

SR - Slew Rate: 500 mV/us

Vos - Input Offset Voltage: 5 mV

Supply Voltage - Min: 7 V

Minimum Operating Temperature: 0 C

Maximum Operating Temperature: + 70 C

Ib - Input Bias Current: 500 nA

Operating Supply Current: 1.7 mA

Shutdown: No Shutdown

CMRR - Common Mode Rejection Ratio: 70 dB to 90 dB

Series: UA741

Packaging: Tube

Height: 4.57 mm

Length: 9.81 mm

Product: Operational Amplifiers

Supply Type: Dual

Technology: Bipolar

Width: 6.35 mm

Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 3.5 V

Operating Supply Voltage: +/- 3.5 V to +/- 18 V

Pd - Power Dissipation: 500 mW (1/2 W)

Factory Pack Quantity: 50

Subcategory: Amplifier ICs

Vcm - Common Mode Voltage: Negative Rail + 3 V to Positive Rail - 3 V

Voltage Gain dB: 106.02 dB

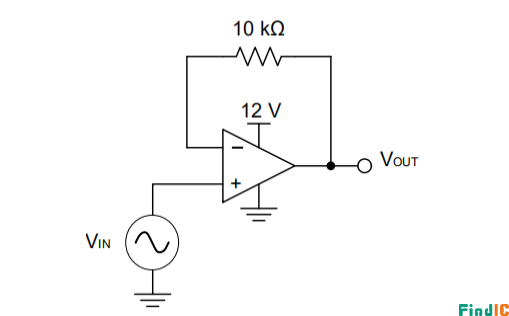

5、 UA741  Typical application diagrams:

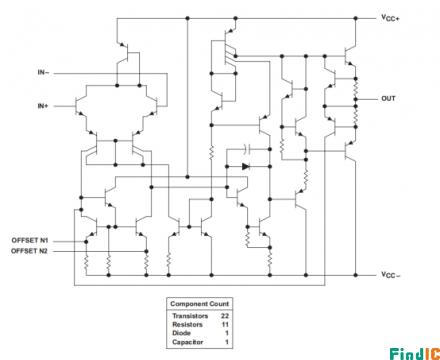

6、UA741  schematic:

 7、UA741 Applications:

• DVD Recorders and Players

• Pro Audio mixers
